Now Launched! The HUATEK 20 kV High-Voltage Amplifier is Here!
I. Introduction to HUATEK 20 kV High-Voltage Amplifier Products

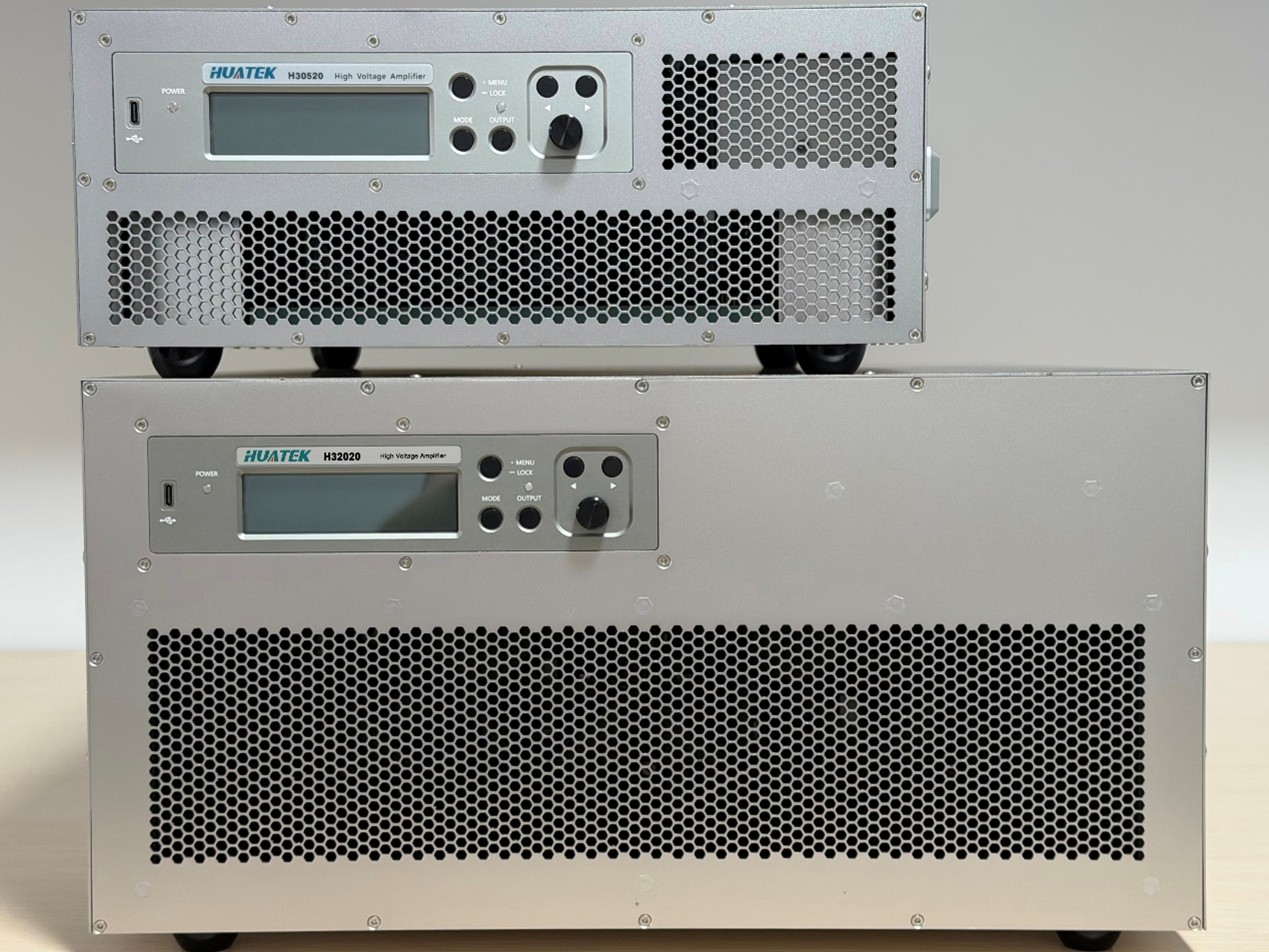

The HUATEK H32010/H32020 represents an exceptional desktop high-voltage signal amplifier, featuring a 5U chassis height constructed from high-strength aluminum alloy. Beyond digitally controlled gain and DC offset adjustment, the H32010/H32020 incorporates the unique Hiccup Mode for short-circuit protection, enabling Auto-Recovery to ensure safety during high-voltage operation. Its outstanding performance makes it suitable for a wide range of high-voltage drive applications.
Product Highlights:
✓ High-Voltage Amplification: ±20 kV (40 kV peak-to-peak)
✓ Large-Signal Bandwidth: DC to 6 kHz / 7.5 kHz / 10 kHz
✓ Maximum Current: ±10 mA / ±20 mA with full bandwidth current capability, delivering up to 400 W peak power
II. Key Features of HUATEK High-Voltage Amplifiers
- Continuously Digitally Adjustable Gain
✓ Range: 0-2200.0, with 0.1 step resolution - Intelligent Protection
✓ Overload protection and short-circuit protection
✓ Dual modes: One-Shot and Hiccup (enabling Auto-Recovery)
✓ One-button lock function to prevent accidental operation - Built-in DC Voltage Source
✓ ±20 kV range, minimum 2 V step, digitally adjustable
✓ Can function as a standalone DC source or as an AC bias (offset) - Comprehensive Monitoring
✓ Dedicated Voltage Monitor and Current Monitor outputs - Full-Bandwidth Rated Voltage Output
✓ Accepts maximum ±10 V input with compensation
✓ Amplifier gain adjustable from 0-2200.0 in 0.1 steps - Intelligent Thermal Management
✓ Fan speed regulated based on output power, not simply running at full speed on startup
✓ Low noise operation; enhanced long-term reliability for components and circuitry - Remote Control Capability
✓ USB (Type-C) and TTL interfaces for easy programming and system integration - LCD Display
✓ Real-time display of voltage, protection status, gain, and other key parameters
III. Typical Applications
Piezoelectric & MEMS devices, Nanotechnology & Microfluidics, Power Plant Magnetic Field Driving, Materials Science, High-Voltage Insulated Cable Testing, Power Electronics, Ultrasonic Transducers, Electroluminescence, Plasma Excitation, and more.

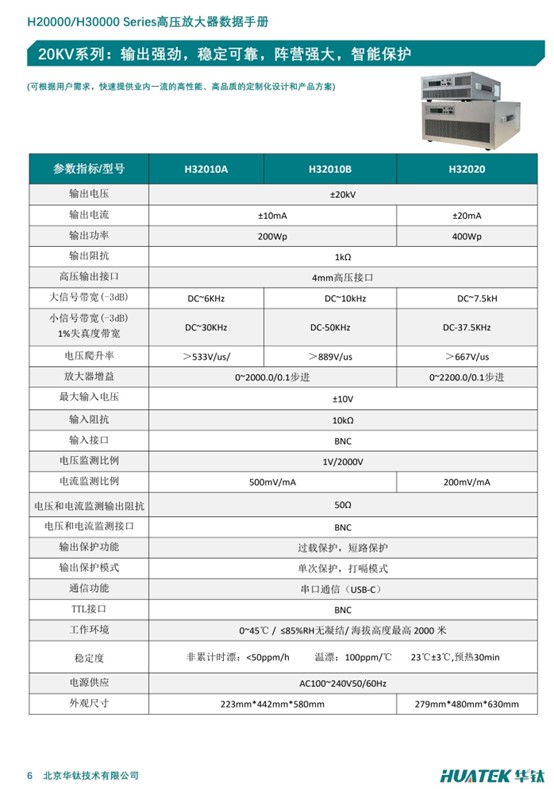

IV. Technical Specifications

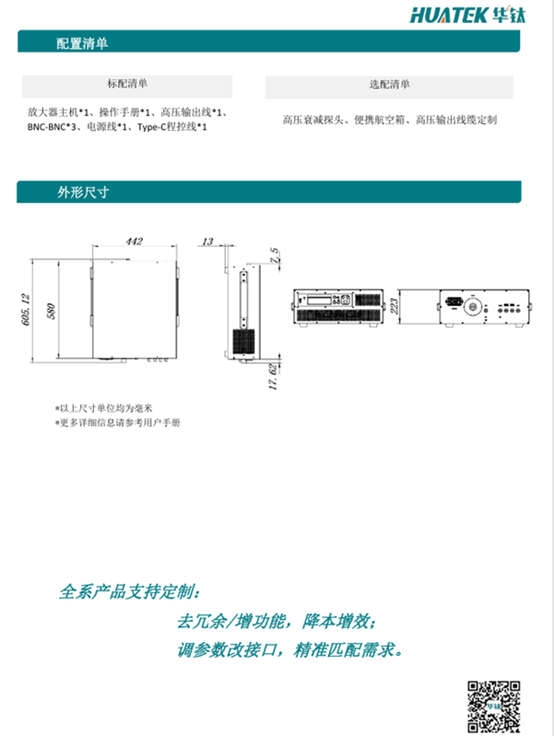

V. Package Contents & Product Dimensions
HUATEK High-Voltage Amplifier Products & Customization:
The three ±20 kV models are now available for order, with significantly shorter lead times compared to imported alternatives. Our 20 kV series, built upon proprietary core technology, is among the first domestically produced models to achieve stable mass production, with performance metrics ranking among the top tier globally. As a domestic brand, our products come with comprehensive warranty support and offer the combined advantages of clear lead times, controllable delivery cycles, and excellent performance.
Our standard H20000 series has become a benchmark for quality in the industry, with a chassis volume comparable to a pack of A4 paper. The 1.1 kV, 2.2 kV, and 3.3 kV models are only a fraction of the size of competing products with similar performance, while the 5 kV model pushes the limits of miniaturization design, standing as a representative flagship product. The customized H2200 module (±2 kV) retains core functionalities while further reducing the volume to roughly half a pack of A4 paper. Additionally, the single-sided 10 kV model also maintains a volume smaller than a pack of A4 paper. This entire product series breaks through the traditional design limitations of the high-voltage amplifier industry in both performance and aesthetics. The newly launched modular 20 kV high-voltage amplifier continues our philosophy and technological strength in极致 miniaturization, capable of comprehensively meeting the practical application needs of various customers.
For more details about HUATEK high-voltage amplifier products, please contact Beijing HUATEK Technology:
Tel/WeChat: 010-53351705 / 18301065540
