H21505: ±1.5kV/50mA/DC-100KHz_±800V to ±7.5KV Amplifier Series

H21505: ±1.5kV/50mA/DC-100KHz

✓ HV Amplification：±1500V (3000Vp-p)

✓ Powerful Output：±50mA，75W (across full band)

✓ Large Signal Bandwidth：DC-100kH

Call the hotline

Introduction

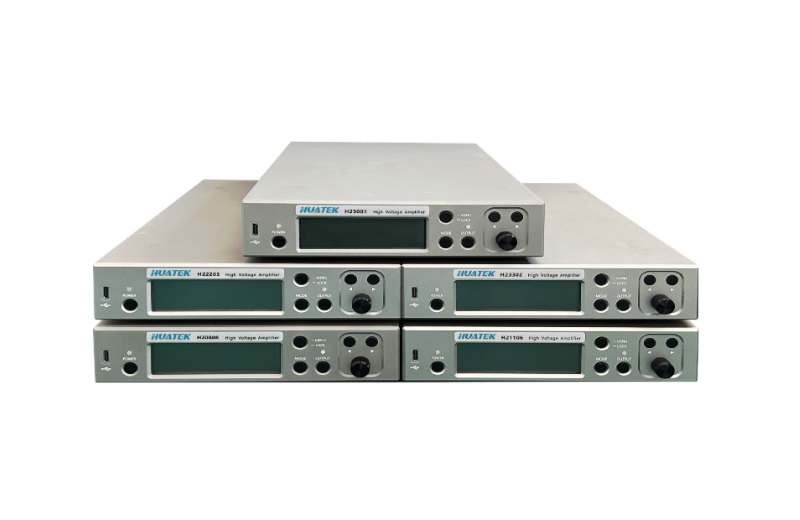

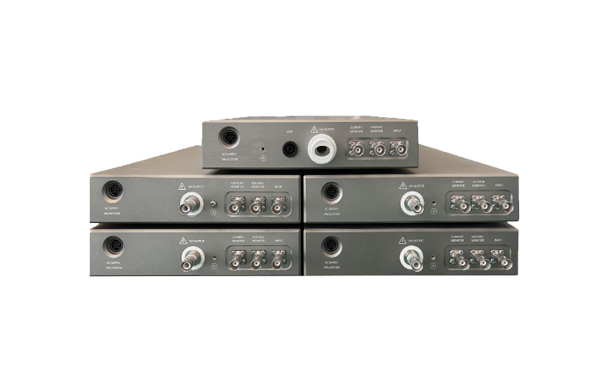

H21505 High Voltage Amplifier

✓ HV Amplification：±1500V (3000Vp-p)

✓ Powerful Output：±50mA，75W (across full band)

✓ Large Signal Bandwidth：DC-100kHz

Features

Highly Compact and Small：

1U(4.45cm) height, A4 paper size

Digital Gain：

0-300.0, 0.1 step

Ensured Rated Output Across Full Band with Effective Compensation：

Max ±10V inputGain , 0-300.0 adjustable, 0.1 step

Build-in DC HV Source：

±1500V，1V step，digital adjustment, Use as DC Source separately, or offset of AC output

Monitor：

Voltage Monitor, Current Monitor

Intelligent Protection：

Overload, Short Circuit, Single Mode, Hiccup Mode (Auto-Recovery),One-key lock

Intelligent Cooling：

On Demand Air cooling , Low Noise；ensuring component and circuit long term reliability

Control：

USB（TYPE C）, easy for control and integration

LCD Display：

voltage, protection, gain

Specifications

Max. Output Voltage	±1.5kV(3kVp-p)	Voltage Monitor	1V/300V
Max. Output Current	±50mA，across full frequence range	Current Monitor	50mV/mA
Peak Output Power	75W	V/I Monitor Output Impedance	50Ω
Output Impedance	100Ω	V/I Monitor Output Connector	BNC
HV Output Connector	4mm HV Connector	THD	-
Large Signal Bandwidth(-3dB)	DC-100kHz	Communication Interface	USB-C
Small Signal Bandwidth(-3dB)	DC-500kHZ	Power Supply	AC220V
Slew Rate	>667V/us	Operating Environment	0~45 ℃/≤ 85% RH Non condensation /Altitude up to 2000 meters
Voltage Gain	0-300.0, 0.1 step	Stability	Non-cumulative drift:<50ppm/h Temperature-drift: 100ppm/℃ 23℃±3℃, preheating for 30min
DC Voltage Source	±1500V，1V step	Dimensions (exclude protrusions)	133340460 (HWD)
Response Time	<2.5µs	Weight	约15Kg
Zero Drift	＜±100mV
Max. Input Voltage	±10V
Input Impedance	10KΩ
Input Connector	BNC
Output Protection	Overload，Short Circuit
Protection Mode	Singel，Hiccup（Auto Recovery）
