Introduction

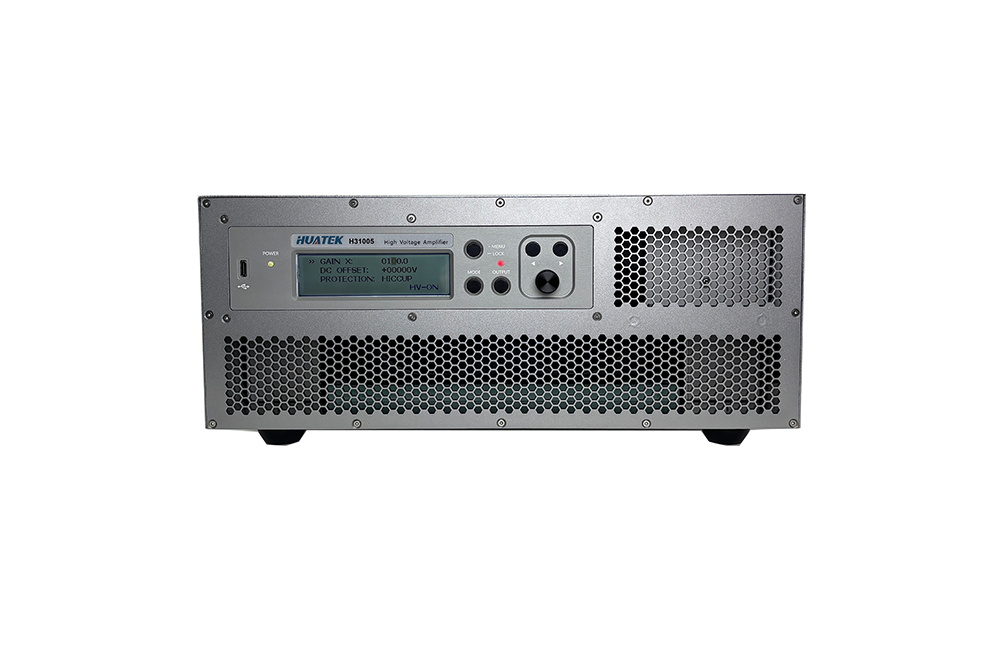

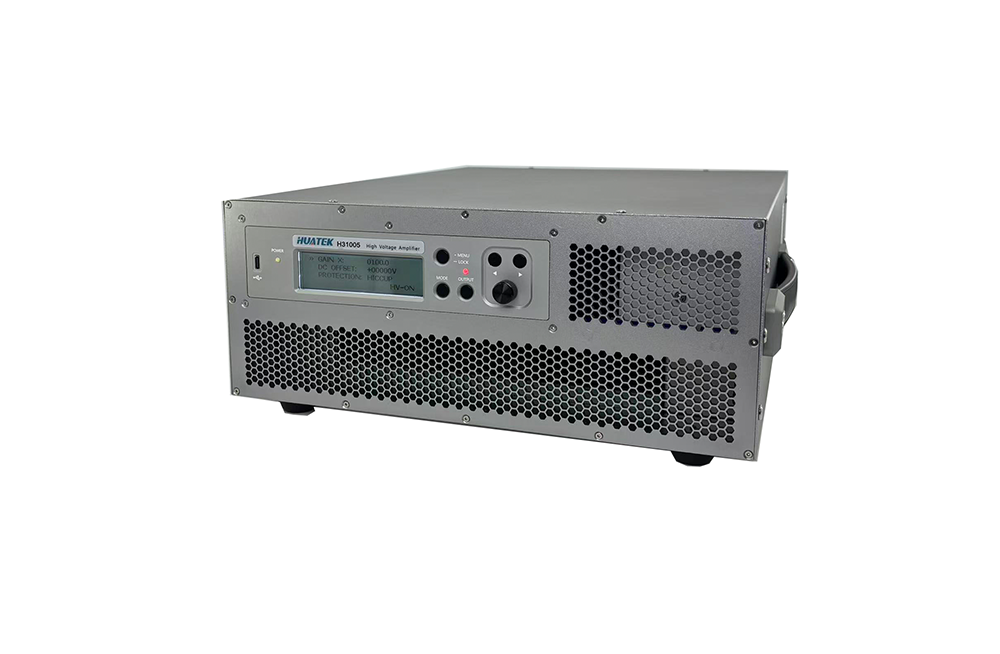

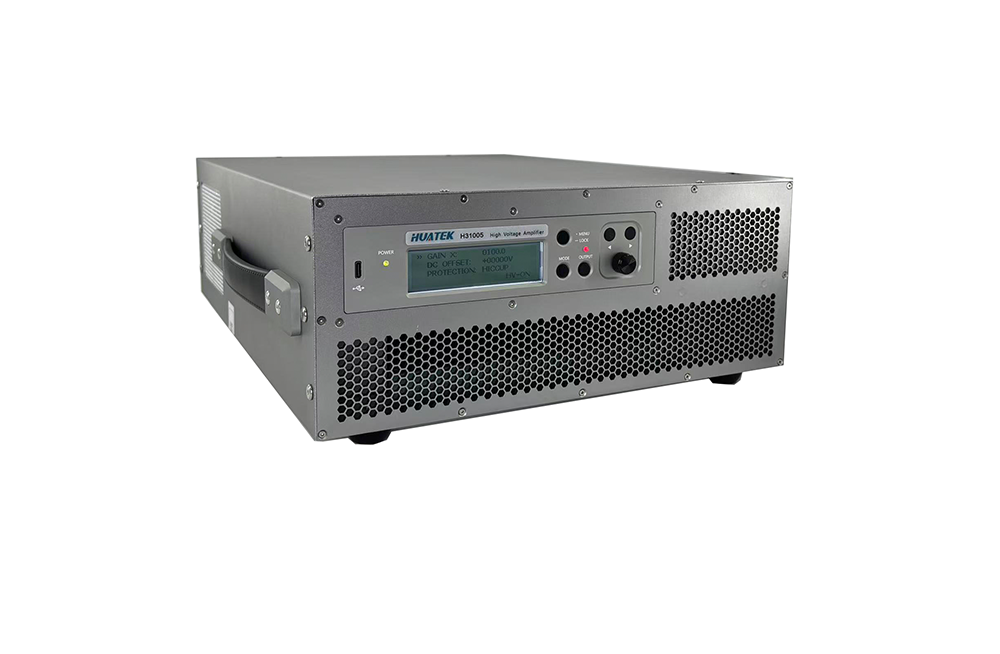

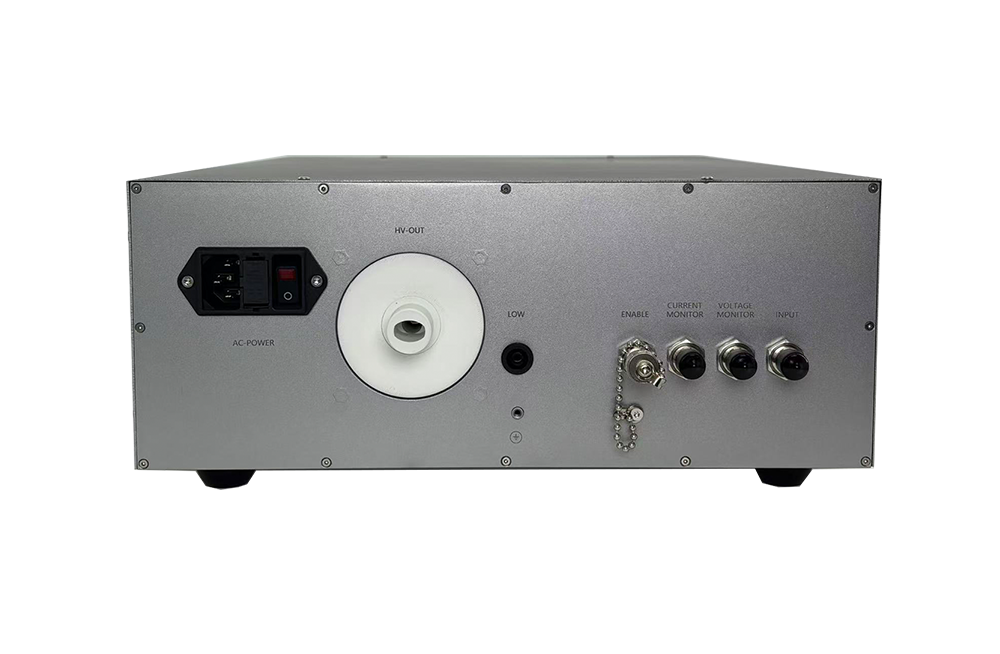

H31005 High Voltage Amplifier

Huatek H31005 is an outstanding desktop high voltage amplifier.

H31005 not only has variable digital gain and offset adjustment, it also has a unique transient protection mode (Hiccup) with auto-recovery from a fault. It’s excellent performance and form factor can be applied in various high voltage scenarios.

✓ HV Amplification：±10KV(20KVpp)

✓ Powerful Output：±5mA ,50W(across full band)

✓ Large Signal Bandwidth：DC-3kHz

Features

Digital Gain：

0-2000，0.1 step

Ensured Rated Output Across Full Band with Effective Compensation：

Max ±10V input ; Gain 0-2000.0 adjustable, 0.1 step

Build-in DC HV Source：

±10KV，1V step，digital adjustment；Use as DC Source separately，or offset of AC output

Monitor：

Voltage Monitor, Current Monitor

Intelligent Protection：

Overload, Short Circuit；Single Mode, Hiccup Mode (Auto-Recovery)；One-key lock

Intelligent Cooling：

On Demand Air cooling ； Low Noise；ensuring component and circuit long term reliability

Control：

USB（TYPE C）, easy for control and integration

LCD Display：

voltage, protection, gain

Specifications

Max. Output Voltage	±10kV(20kVp-p)	Voltage Monitor	1V/2000V
Max. Output Current	±5mA，across full frequence range	Current Monitor	500mV/mA
Peak Output Power	50W	V/I Monitor Output Impedance	50Ω
Output Impedance	500Ω	V/I Monitor Output Connector	BNC
HV Output Connector	4mm HVconnector	THD	-
Large Signal Bandwidth(-3dB)	DC-3KHz	Communication Interface	USB-C
Small Signal Bandwidth(-3dB)	DC-15KHZ	Power Supply	AC 220V
Slew Rate	>133V/us	Operating Environment	0~45 ℃/≤ 85% RH Non condensation /Altitude up to 2000 meters
Voltage Gain	0-2000.0, 0.1步进	Stability	Non-cumulative drift:<50ppm/h Temperature-drift: 100ppm/℃ 23℃±3℃, preheating for 30min

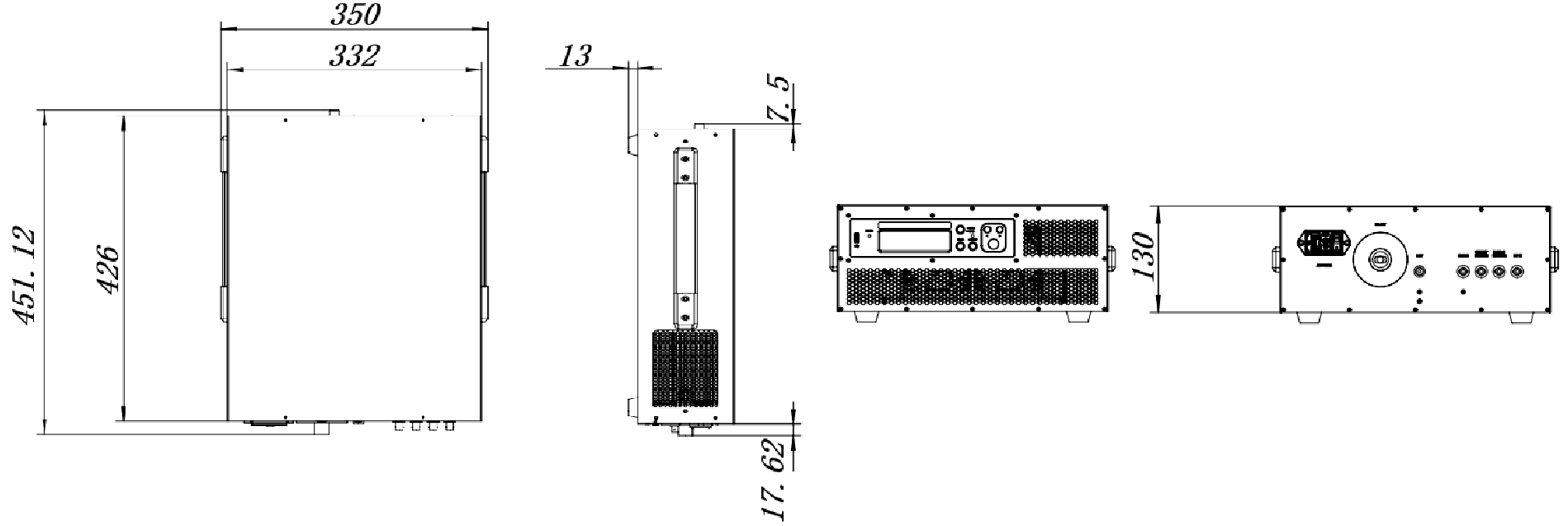

DC Voltage Source	±10KV，1V步进	Dimensions(exclude protrusions)	133mm330mm440(HWD)
Response Time	<83.3µs	Weight	15Kg
Zero Drift	＜±500mV
Max. Input Voltage	±10V
Input Impedance	10KΩ
Input Connector	BNC
Output Protection	Overload，Short Circuit
Protection Mode	Singel，Hiccup（Auto Recovery）
