In high-voltage amplifier applications, the output may face risks such as short circuits, overcurrent, or load anomalies, making reliable protection circuitry crucial. HUATEK High-Voltage Amplifiers employ two intelligent protection mechanisms: One-Shot Mode and Hiccup Mode, providing precise protection for different fault scenarios to ensure safe and stable operation of the equipment.

1. One-Shot Mode: Robust Protection for Extreme Faults

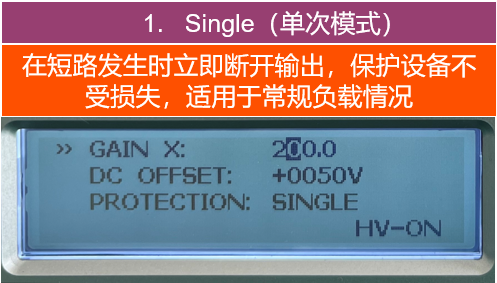

The One-Shot mode is suitable for severe overcurrent or short-circuit conditions. Its core feature is one-time triggering and complete shutdown, preventing sustained overload from causing device damage.

• Trigger Condition: When the      output current exceeds the hardware-set safety threshold (e.g., short      circuit or severe overload), the protection circuit responds immediately.
• Protective Action: The amplifier output stage is      completely shut down, entering a latched state to prevent further energy      transfer.
• Recovery Method: Requires      manual intervention (e.g., restarting the device or clearing the fault      signal) to resume normal operation.
• Applicable Scenarios: Suitable      for debugging phases, high-risk short-circuit environments, or situations      requiring strict manual confirmation, ensuring the equipment remains      undamaged under extreme faults.

2. Hiccup Mode: Intelligent Recovery for Enhanced System Resilience
The Hiccup mode is suitable for recoverable overloads or transient anomalies. Its characteristic is periodic restart attempts, reducing unnecessary downtime.

• Trigger Condition: Detects      sustained overcurrent or overheating, but not reaching the hard protection      threshold of One-Shot mode.

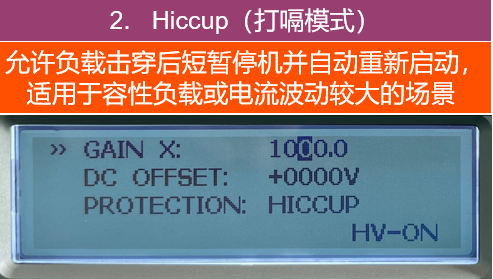

• Protective Action: Enters a      "Shutdown-Delay-Restart" cycle:
• Shuts down the output, cutting off the current.
• Waits for cooldown (hundreds of milliseconds to several       seconds).
• Attempts a soft start. If the fault persists, shuts down       again, repeating the cycle.
• Recovery Method: Automatic      recovery. Returns to normal output automatically once the fault is      cleared.

• Applicable Scenarios: Suitable      for industrial continuous operation, occasional load anomalies (e.g.,      mechanical jamming), or heat dissipation fluctuations, improving system   availability.

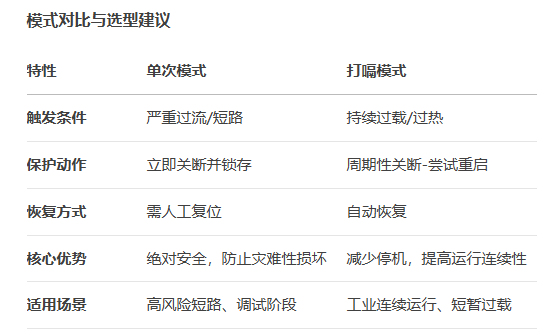

3. Mode Comparison and Selection Guidelines

4. Intelligent Protection Design of HUATEK High-Voltage Amplifiers

HUATEK High-Voltage Amplifiers typically integrate both protection modes and can intelligently switch based on fault severity. Their protection circuitry features fast response (μs-level), precise threshold setting, and a low false-trigger rate, ensuring reliable operation even in demanding environments. Users can select the appropriate protection strategy (e.g., based on load characteristics, risk level) to achieve an optimal balance between safety and continuity.

Summary: The One-Shot mode provides "ultimate protection" for fatal faults, while the Hiccup mode enhances "system resilience" for recoverable anomalies. Through the coordinated operation of these two modes, HUATEK High-Voltage Amplifiers offer comprehensive intelligent protection for high-voltage drive applications, significantly improving equipment reliability and service life.
