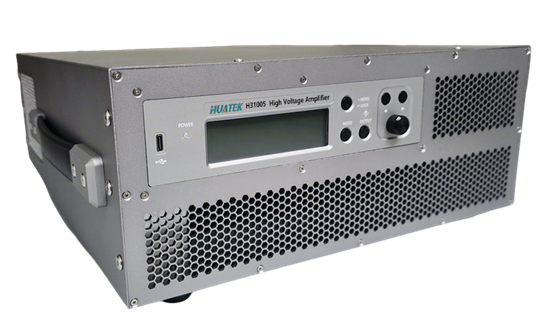

1. Product Overview

The HUATEK H30000 Series - H31005 Amplifier redefines industry standards for high-voltage amplifiers with breakthrough technical specifications and all-scenario adaptability. Its core performance parameters are top-tier: it supports ±10000V (20 kVp-p) output voltage and 5 mA peak current, delivers 50 Wp output power, offers a bandwidth covering DC-3 kHz, achieves a slew rate >133 V/µs, and is equipped with a high-capability DC offset voltage output of up to 10 kV. This comprehensively meets the demanding requirements of applications such as semiconductor testing and material polarization. Compared to similar products, it holds significant advantages in aspects like distortion and slew rate, making it particularly suitable for high-frequency dynamic testing.

2. Key Advantages & Highlights

1. High-Performance Specifications:
        Supports ±10000V (20 kVp-p) output voltage and      5 mA peak current, delivers 50 Wp output power, offers a bandwidth      covering DC-3 kHz, achieves a slew rate >133 V/µs, and features a      high-capability DC offset voltage output of up to 10 kV, meeting the needs      of most high-voltage application scenarios.
2. Adjustable Gain with Real-Time Monitoring:
        Features adjustable gain (0.0 ~ 2000.0 / 0.1      step) and integrates real-time voltage/current monitoring ports (BNC),      allowing direct connection to an oscilloscope for signal tracking.
3. Flexible Output Control:
        Offers three control/output methods: front      panel button control, serial port programming control, and TTL level      triggering. This provides flexible adaptation to various usage scenarios,      including manual laboratory operation, industrial automated production      lines, and real-time triggering requirements.
4. Efficient Thermal Management Design:
        A comprehensive solution tackling high-power      operation challenges through material, structure, and intelligent control:      Utilizes an aluminum alloy chassis with excellent thermal conductivity for      a solid foundation; paired with a honeycomb multi-faceted heat dissipation      structure that significantly expands cooling channels and accelerates heat      expulsion; further enhanced by an intelligent PID temperature control      system for real-time, precise regulation that dynamically adapts to power      changes. This triple synergy effortlessly handles the thermal pressure of      sustained high-power operation, ensuring the equipment remains stable and      efficient.
5. Broad Applicability:
        Suitable for fields including semiconductor      testing, material polarization, plasma drive, electrostatic spinning, and      MEMS research.

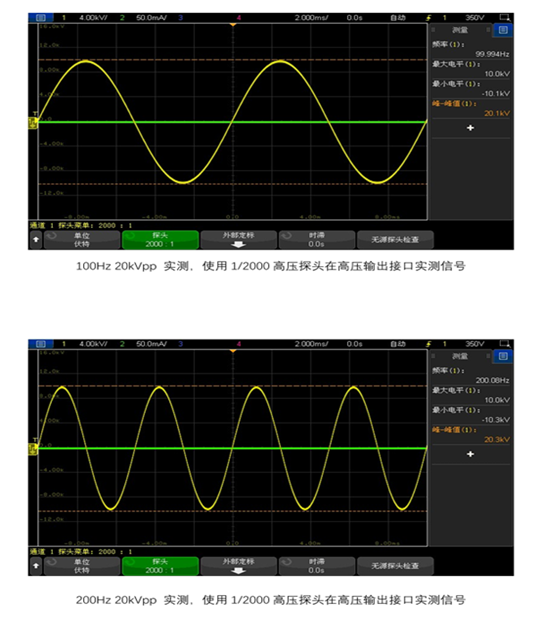

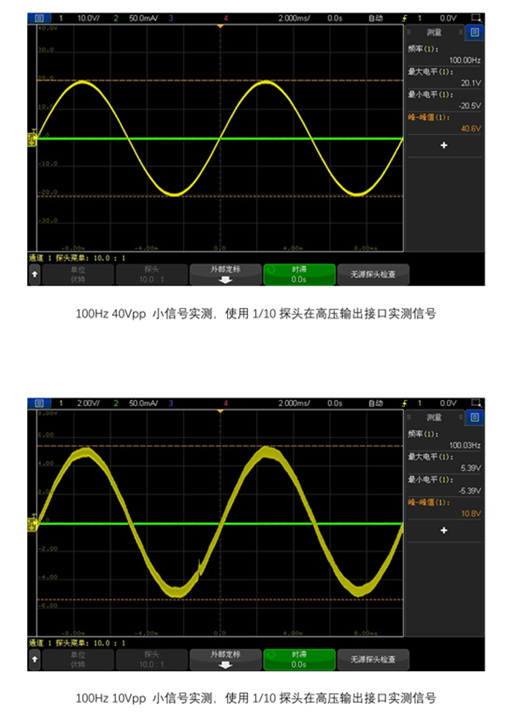

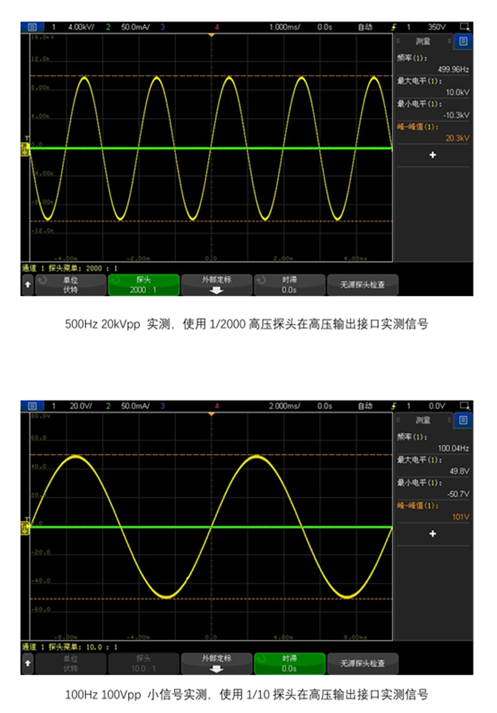

3. HUATEK MODEL 31005 High-Voltage Amplifier Actual Measurements

4. Value in Domestic Replacement

Compared to traditional imported equipment, the HUATEK H31005 offers performance at the same level at a domestically competitive cost (price available upon request), while also addressing issues like slow after-sales response. It supports customization services and technical training. Its stability (temperature drift < 100 ppm/°C) and digital operation interface make it especially suitable for high-precision experimental environments.

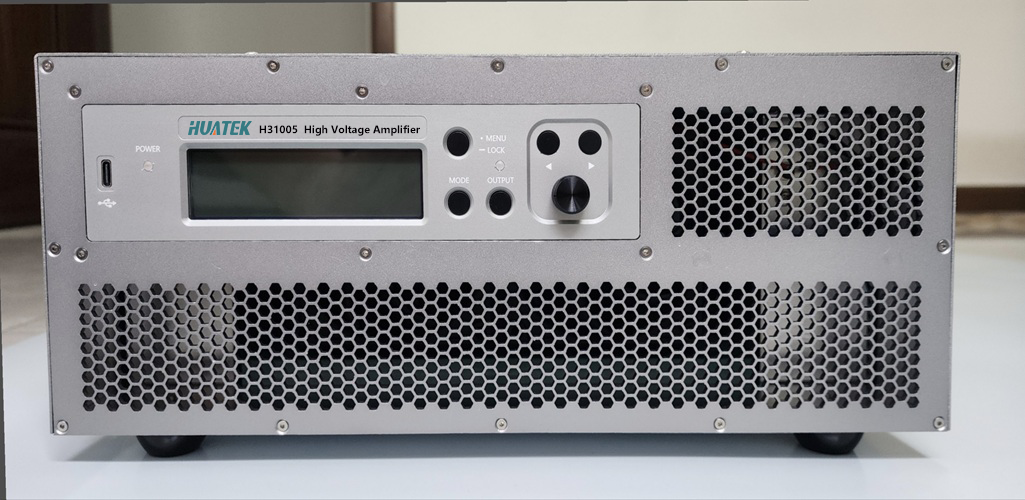

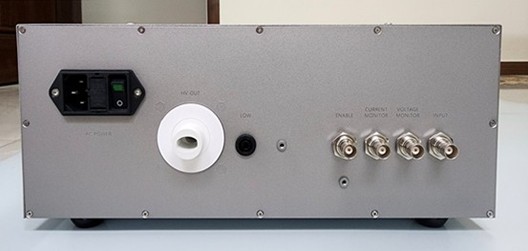

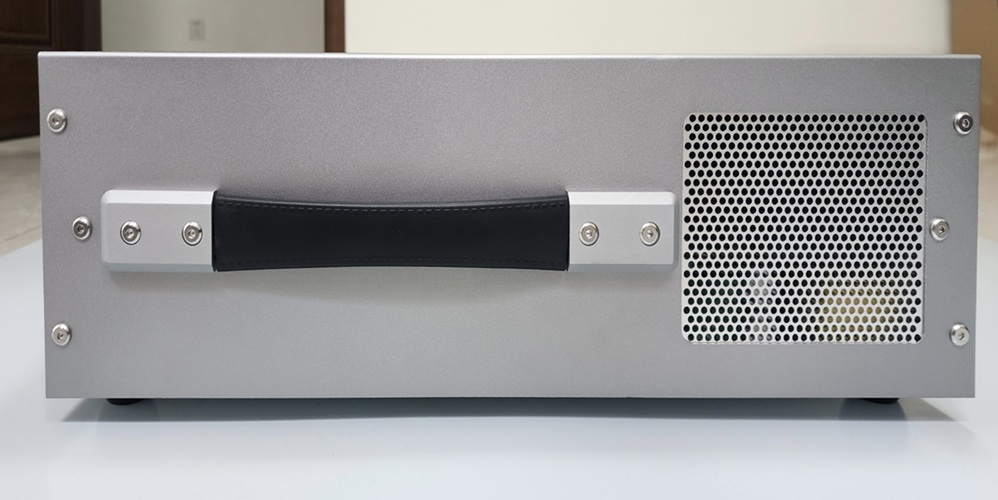

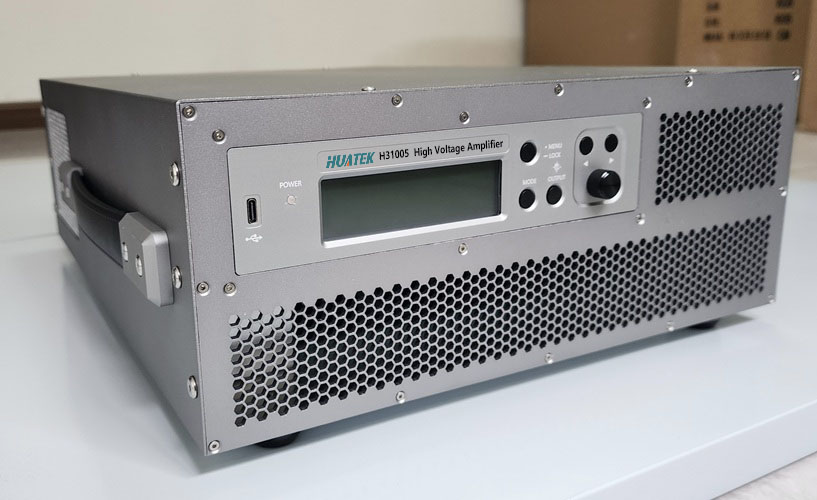

5. HUATEK (H31005) High-Voltage Amplifier - Actual Product Appearance Showcase

For more product details, please contact Beijing Huatek Technology Co., Ltd.: 010-53351705 / 18301065540 (WeChat)
