Application of the HUATEK ±10kV High-Voltage Amplifier in Leakage Current Testing for High-Voltage Insulated Cables

Application of the HUATEK ±10kV High-Voltage Amplifier in Leakage Current Testing for High-Voltage Insulated Cables

In power system operation, the insulation performance of high-voltage cables is directly related to the safety and stability of the grid. Statistics show that over 40% of transmission line faults originate from undetected insulation defects. Leakage current, as a key indicator reflecting insulation status, has always been a core challenge in the field of power detection. Traditional methods like the Megger test can only provide static insulation resistance values and cannot simulate the actual high-voltage operating conditions of cables. The application of ±10kV high-voltage amplifiers enables the precise capture of leakage current under dynamic high-voltage excitation, providing a testing method for insulation defect diagnosis that is closer to real-world operating conditions.

I. The Nature of Leakage Current Testing for High-Voltage Insulated Cables

Leakage current testing for high-voltage insulated cables essentially involves applying a specified high-voltage excitation and measuring the minute current flowing through the insulating medium to evaluate its insulation performance. Under normal conditions, high-quality insulation materials allow only nanoampere-level currents to pass under a high-voltage electric field. When defects such as impurities, air bubbles, or aging exist, the leakage current increases significantly, forming localized high field strength concentrations, which may lead to insulation breakdown over time. The symmetrical bipolar voltage output provided by the ±10kV high-voltage amplifier can simulate the positive and negative half-cycle working states of AC transmission lines, offering a more accurate reflection of the cable's actual insulation withstand capability compared to traditional DC high-voltage sources.

II. Components of Leakage Current Signal

The leakage current signal contains capacitive and resistive components, with the resistive component directly reflecting the degree of insulation material degradation. Under 10kV voltage excitation, the leakage current of a healthy cable is typically stable in the range of 0.1-1 μA, while cables with severe defects may exceed 10 μA. The low-noise characteristics of the high-voltage amplifier are crucial. For example, the output ripple of HUATEK series high-voltage amplifiers can be controlled within 0.1%, ensuring a high signal-to-noise ratio for weak leakage current measurements.

III. Technical Advantages of High-Voltage Amplifier Excitation

Compared to traditional testing methods, high-voltage amplifier excitation technology offers three main advantages: First, a wide voltage adjustment range, enabling continuous adjustment from 0 to ±10kV to meet the testing needs of cables with different specifications. Second, fast response time, with a rise time of less than 1ms, allowing the capture of instantaneous insulation breakdown processes. Third, comprehensive overcurrent protection functionality, where the output can be automatically cut off when the leakage current exceeds a set threshold (typically set at 50 μA), preventing further damage to defective cables.

IV. Development Trends

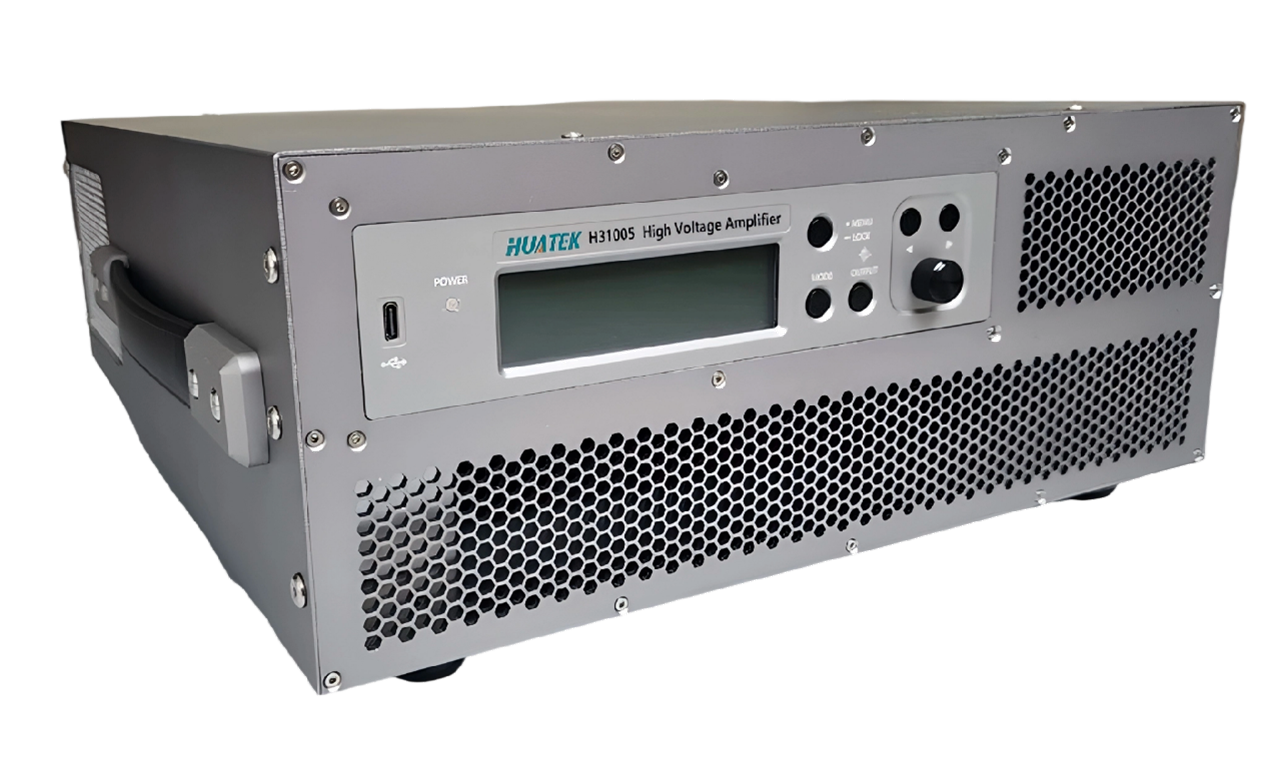

The HUATEK ±10kV high-voltage amplifier plays a core role in the leakage current testing of high-voltage insulated cables. This equipment can provide precise and stable high-voltage DC or AC output, creating the necessary strong electric field environment for evaluating cable insulation performance. Its key value lies in its ability to accurately monitor minute leakage currents at the picoampere (pA) level simultaneously, thereby effectively assessing the dielectric strength and aging state of insulation materials.

In actual testing, by applying a stepwise increasing voltage and recording the corresponding changes in leakage current, the current-voltage (I-V) characteristic curve of the material can be precisely plotted. This allows for accurate judgment of its insulation defects, aging degree, and breakdown critical point. The high stability and low-noise characteristics of the HUATEK amplifier ensure the accuracy and reliability of test data, making it an indispensable key tool in cable research and development, production quality inspection, and long-term service condition assessment.
